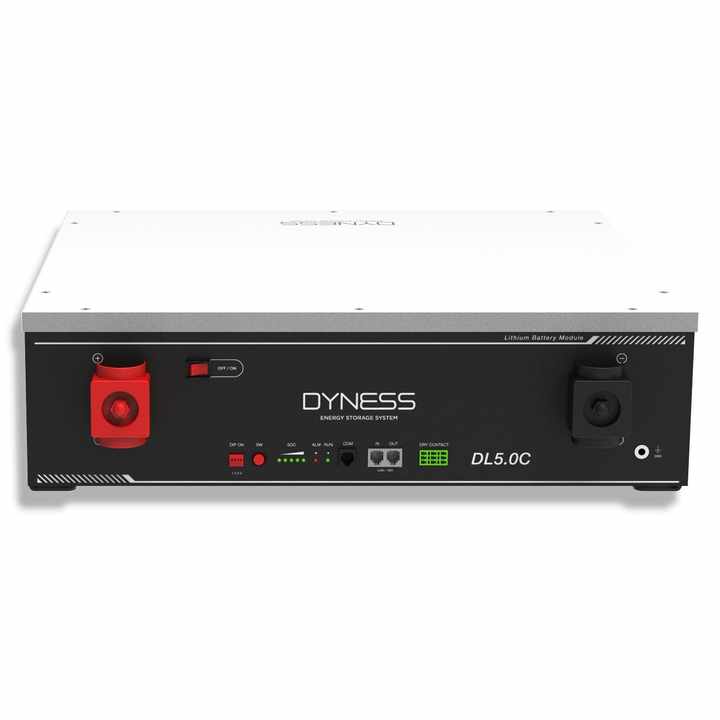

Dyness DL5.0C Low Voltage 5KW Battery

The Dyness DL5.0C is a high-performance Lithium Iron Phosphate (LiFePO4) battery module, designed for residential and small commercial energy storage applications.

Offering 5.12kWh of nominal energy, the DL5.0C battery module is a scalable solution, capable of expanding up to 256kWh by connecting up to 50 units in parallel. This flexibility makes it ideal for various energy storage needs, including both off-grid and hybrid systems.

• Battery type: LiFePO4
• Nominal Energy: 5.12kWh
• Nominal Capacity: 100Ah
• Nominal Voltage: 51.2V
• Operating Voltage: 44.8V – 57.6V
• Cycle Life: Over 6,000 cycles at 90% Depth of Discharge (DoD)
• Dimensions: 558 x 545 x 150 mm (W x D x H)
• Net weight: 54 kg
• Protection level: IP20
• Expansion: Up to 50 units in parallel
• Compatible inverters: SMA/Victron/Ingeteam/Delios/Goodwe/Solis/Deye/SAJ/Voltronic/Sungrow etc.
