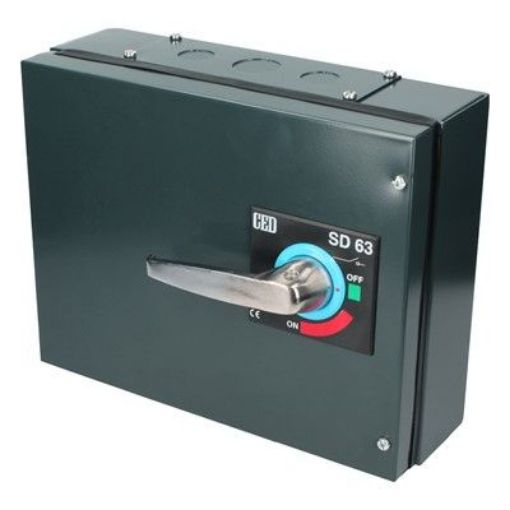

The CED range of surface mounting - Industrial Switches and Switch Fuses in Grey Sheet Steel Enclosures are manufactured in compliance to EN60947-3 1992/A1-1995, A2 -1997 and Low Voltage Directive 73/23/EEC. These product ranges are suitable for use with 250v as well as being fitted with lockable chrome handle up to 63A and 100/160A black lockable handle. They are available in 20, 32, 63, 100 & 160Amps.
Products specifications
| Voltage Rating | 415V, 63A, 440vA |
| Dimensions | 307x235x141mm |
| IP Rating | IP41 |
| Finish | Dark Metallic Grey |
| Approvals | CE |
| Cable | 1.5mm |
| Input Voltage | 415V - 50Hz |
| Knockouts | 2x251x32mm |
| Output Voltage | 440V |
| Number of Poles | TPN |
| Terminal Capacity | 35mm |
| Material | Steel Enclosure |
| Warranty | 1 year |
